Extinguisher

Specification of Fire Extinguisher

check [type, Spurt Time, Capacity, Spurt distance, Total weight, Compression Pressure, Powder weight, Service temperature, Main ingredient of] of train inside
Type Powder Extinguisher(Compression type) Spurt Time 12~15 seconds
Capacity A4. B6, C Spurt distance 4~6m
Total weight 6.67kg Compression Pressure 9.8kg/cm²
(N2 gas)
Powder weight 4.5kg Service temperature -20°C ~ -40°C
Main ingredient of NH4H2PO4 - -

Installation Place and Quantity

  • Each end of cabin: 2 PCS (total 8 PCS)
  • Operator’s cab: 1 PC (total 2 PCS)
  • Quantity per 1 service: 10 PCS

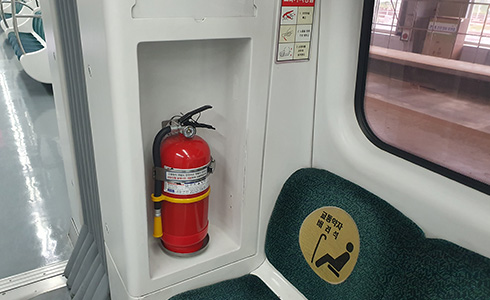

  • image : Cabin

    room

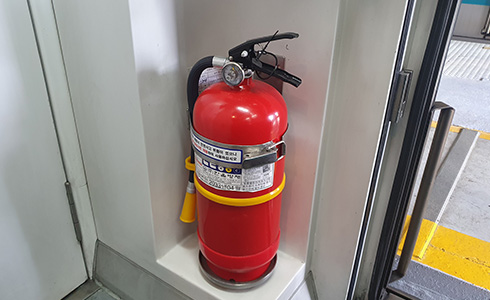

  • image : Operator’s cab

    driving room

Operator’s cab

  1. Pull the steel string lever to take the extinguisher out
  2. Access the fire extinguisher near (3~5m) the fire point
  3. Pull out the safety pin and aim the nozzle to the fire point
  4. Press the handle hard and spray powder leaning against wind as if sweep with a broom

Emergency door open/close

image : 1st step – train(Emergency door)

1st step – train

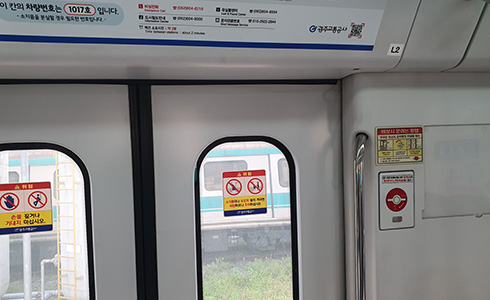

Emergency door switches are on cover of the door

image : 2nd step – train(Emergency door)

2nd step – train

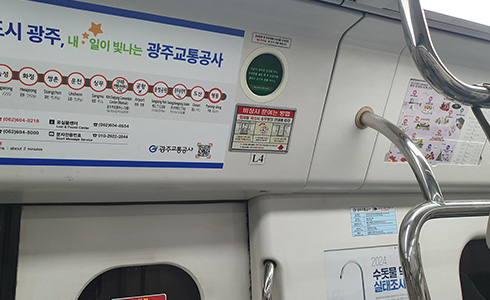

Emergency handle is at side of the door

Emergency interphone

image : 1st step – train(Emergency interphone)

1st step – train

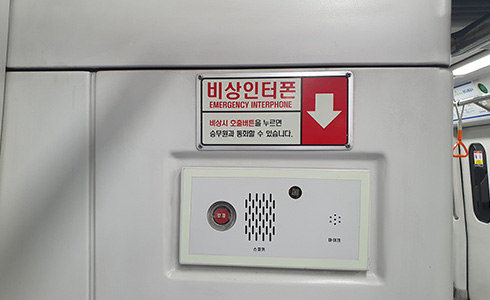

There is an emergency interphone at side of the handicap seat

image : 2nd step – train(Emergency interphone)

2nd step – train

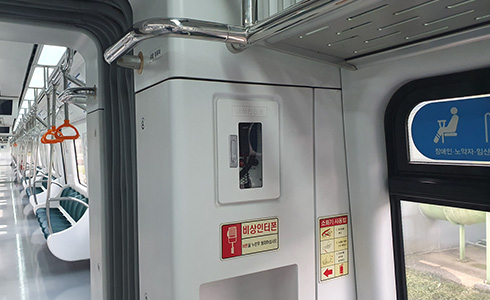

There are 2 emergency interphones at side of the handicap seat.
In addition, emergency interphone type is changed to hand mike type.

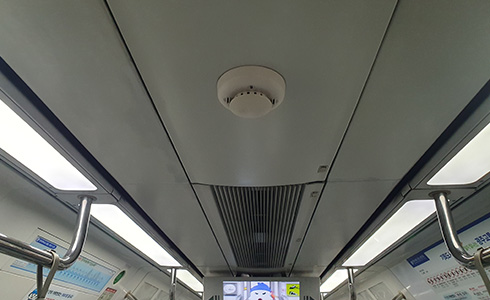

Fire detector

화재감지장치 2단계 차량

2 fire detection systems are installed in each
